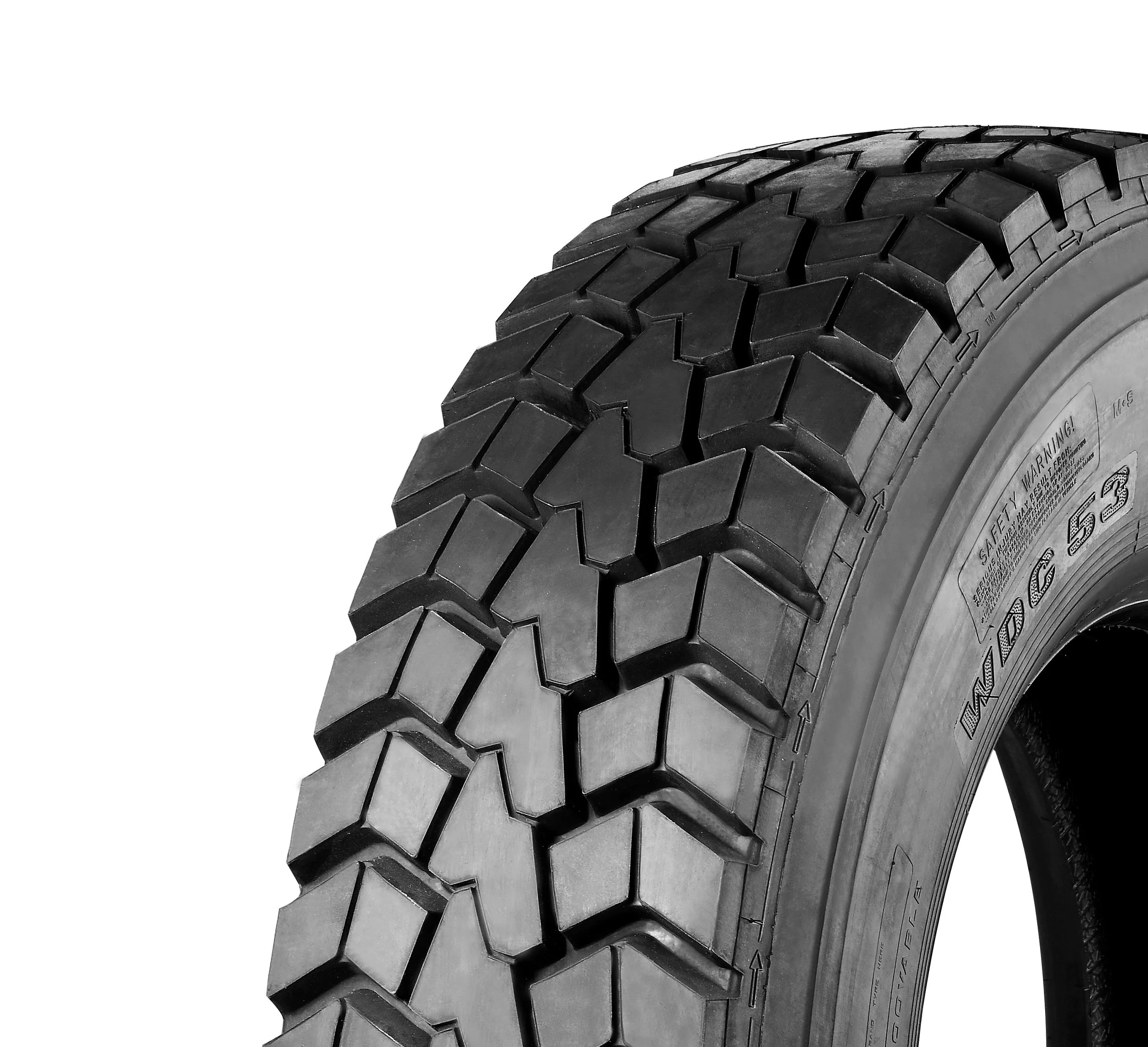

WDC53
The Windpower WDC53 is a radial truck tire designed for on and off-road service applications, especially in severe conditions. Its rugged directional tread provides outstanding self-cleaning abilities, and reinforced casing for even the most harsh terrain applications.
DESIGNED FOR:
Regional Trucks
Dump Trucks
Concrete Mixers
Refuse Trucks
Construction Vehicles
Heavy Haulage
Traction Tyre

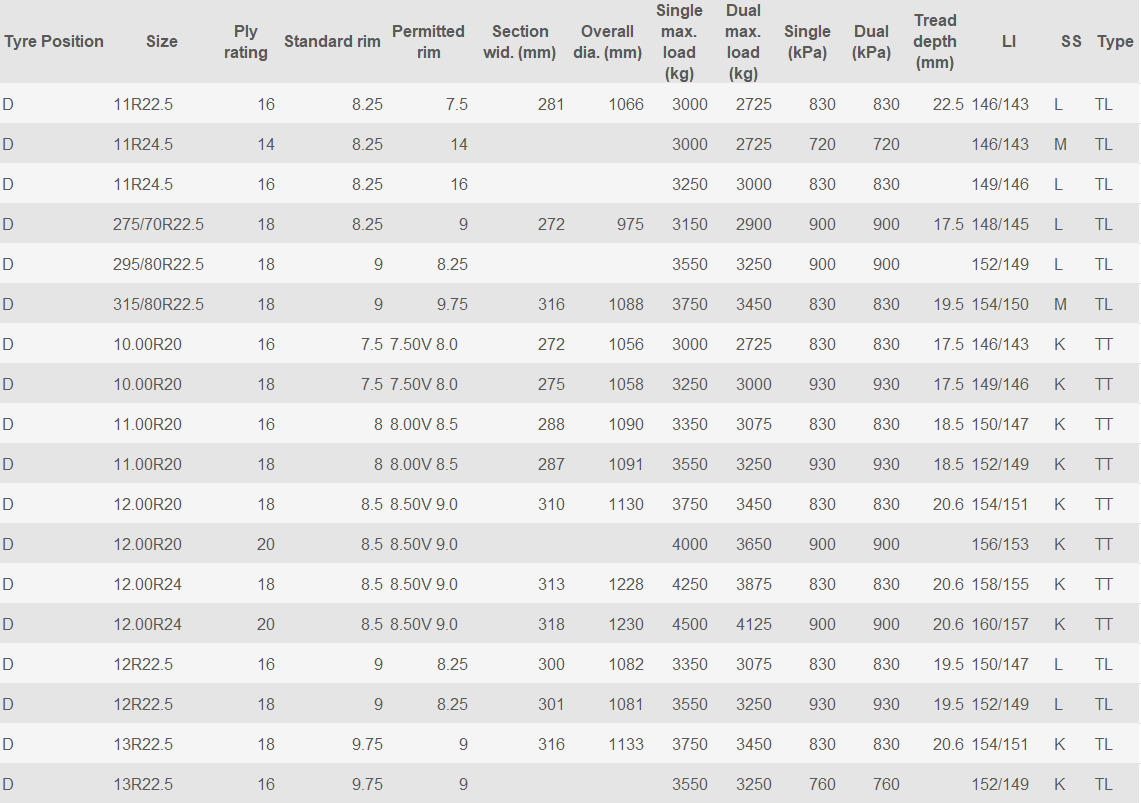

| Size | Ply | Pattern | Standard Rim | Permitted Rim | Max Load Single (kg) | Max Load Dual (kg) | Max Pressure Single (kPa) | Max Pressure Dual (kPa) | Tread Depth (mm) | Tread Width (mm) | LI/SS | Second LI/SS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 315/80R22.5 | 18PR | WDC53 | 9.00 | 9.75 | 3750 | 3450 | 830 | 830 | 19.5 | 246 | 154/151M | 156/150L |
| 315/80R22.5 | 20PR | WDC53 | 9.00 | 9.75 | 4125 | 3750 | 900 | 900 | 19.5 | 246 | 157/154M | --- |
| 295/80R22.5 | 18PR | WDC53 | 9.00 | 8.25 | 3550 | 3250 | 900 | 900 | 19 | 246 | 152/149 L | --- |
| 275/70R22.5 | 18PR | WDC53 | 8.25 | 9.00 | 3150 | 2900 | 900 | 900 | 20.6 | 218 | 148/145 L | --- |
| 13R22.5 | 18PR | WDC53 | 9.75 | 9.00 | 3750 | 3450 | 830 | 830 | 20.6 | 242 | 154/151 K | 156/150G |
| 12R22.5 | 18PR | WDC53 | 9.00 | 8.25 | 3550 | 3250 | 930 | 930 | 19.5 | 239.34 | 152/149L | --- |
| 11R24.5 | 16PR | WDC53 | 8.25 | 7.50 | 3250 | 3000 | 830 | 830 | 22.5 | 215 | 149/146L | --- |
| 11R22.5 | 16PR | WDC53 | 8.25 | 7.50 | 3000 | 2725 | 830 | 830 | 13.5 | 220 | 146/143L | 148/145K |
