WSL91

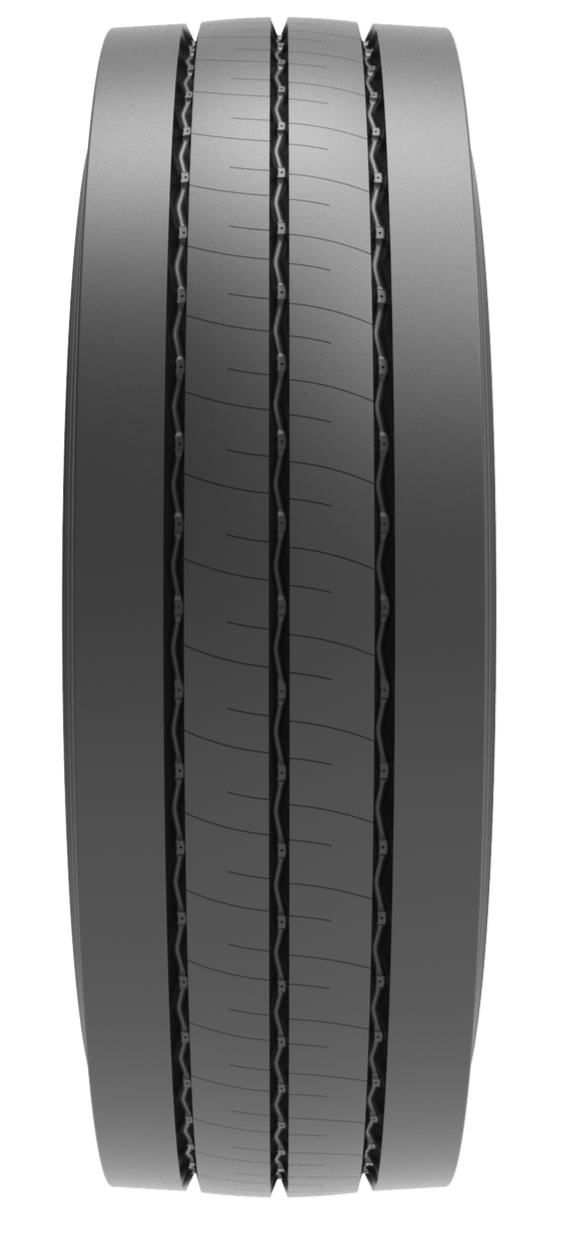

The Windpower WSL91 is a new and improved version of the WSL60, with increased rubber volume and a closed shoulder design which provides up to 25% more milage compared to the previous generation product. Available in both a steer/trailer (4 grooves) and trailer configuration (3 grooves), the WSL91 & WSL91T are optimised for line-haul trucking and heavy haulage. It is performs quietly and with stability across good road surface conditions with great braking and low rolling resistance.
DESIGNED FOR:
Long-Haul Trucks
Line Haul Trucks
Freeway Driving Trucks
Available in WSL91T
(TRAILER - 3 GROOVES INSTEAD OF 4)Heavy Haulage Float Trailer

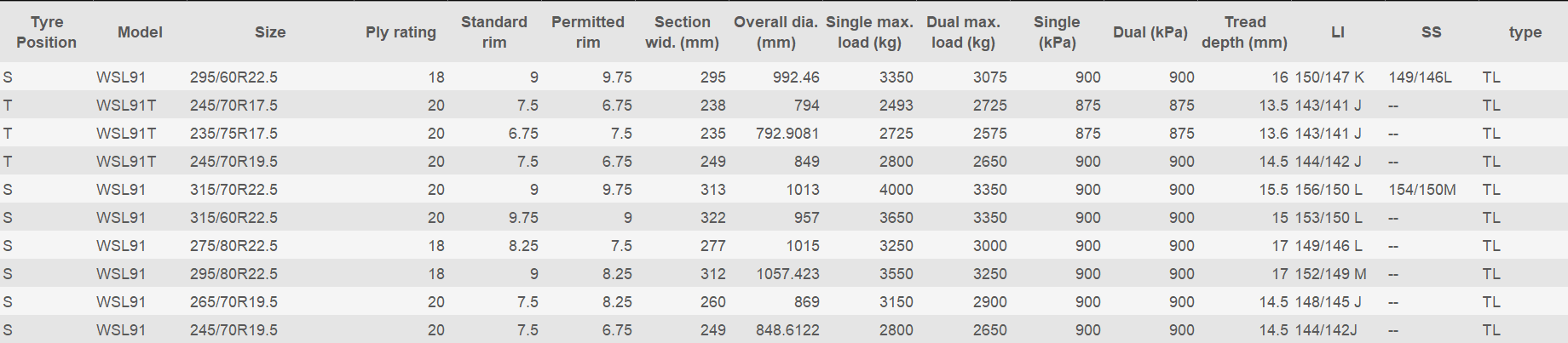

| Size | Ply | Pattern | Standard Rim | Permitted Rrim | Max Load Single (kg) | Max Load Dual (kg) | Max Pressure Single (kPa) | Max Pressure Dual (kPa) | Tread Depth (mm) | Tread Width (mm) | LI/SS | Second LI/SS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 315/70R22.5 | 20PR | WSL91 | 9.00 | 9.75 | 4000 | 3350 | 900 | 900 | 15.5 | 269 | 156/150L | 154/150M |
| 315/60R22.5 | 20PR | WSL91 | 9.75 | 9.00 | 3650 | 3350 | 900 | 900 | 15 | 275 | 153/150 L | --- |
| 295/80R22.5 | 18PR | WSL91 | 9.00 | 8.25 | 3550 | 3250 | 900 | 900 | 17 | 250 | 152/149 M | --- |
| 295/60R22.5 | 18PR | WSL91 | 9.00 | 9.75 | 3350 | 3075 | 900 | 900 | 16 | 250 | 150/147K | 149/146L |
| 275/80R22.5 | 18PR | WSL91 | 8.25 | 7.50 | 3250 | 3000 | 900 | 900 | 17 | 240 | 149/146 L | --- |
| 275/70R22.5 | 18PR | WSL91 | 8.25 | 9.00 | 3150 | 2900 | 900 | 900 | 15.5 | 240 | 148/145M | 0 |
| 265/70R19.5 | 20PR | WSL91 | 7.50 | 8.25 | 3150 | 2900 | 900 | 900 | 14.5 | 235 | 148/145J | --- |
| 245/70R19.5 | 20PR | WSL91 | 7.50 | 6.75 | 2800 | 2650 | 900 | 900 | 14.5 | 218.83 | 144/142J | --- |
| 245/70R19.5 | 20PR | WSL91T | 7.50 | 6.75 | 2800 | 2650 | 900 | 900 | 14.5 | 215 | 144/142J | --- |
| 245/70R17.5 | 20PR | WSL91 | 7.50 | 6.75 | 2725 | 2575 | 875 | 875 | 13.5 | 220 | 143/141 J | -- |
| 245/70R17.5 | 20PR | WSL91T | 7.50 | 6.75 | 2725 | 2575 | 875 | 875 | 13.5 | 220 | 143/141 J | 146/146F |
| 235/75R17.5 | 20PR | WSL91 | 6.75 | 7.50 | 2725 | 2575 | 875 | 875 | 13.5 | 220 | 143/141 J | -- |
| 235/75R17.5 | 20PR | WSL91T | 6.75 | 7.50 | 2725 | 2575 | 875 | 875 | 13.5 | 220 | 143/141 J | 146/146F |
| 215/75R17.5 | 18PR | WSL91 | 6.00 | 6.75 | 2725 | 2575 | 860 | 860 | 13.5 | 190 | 143/141J | -- |
